The Humongous nfu Survival Guide

Github: github.com/spencertipping/nfu

A lot of projects I’ve worked on lately have involved an initial big Hadoop job that produces a few gigabytes of data, followed by some exploratory analysis to look for patterns. In the past I would have sampled the data before loading it into a Ruby or Clojure REPL, but increasingly I’ve started to use nfu for these last-mile transformation tasks:

$ history | nfu -F '\s+' -f2gcOT5
96 ls
61 nfu # nfu at #2! booyah!
49 gs
48 vim
25 cd
$

This humongous survival guide covers nearly every aspect of nfu, from simple text-based data aggregation to module loading, JSON parsing, local map/reduce, and inner and outer joins.

What is nfu?

nfu is a command-line Perl tool that builds shell pipelines to transform text data. Conceptually, it does two things:

  1. Provides shorthands for common idioms of UNIX shell commands like sort
  2. Wraps Perl to be more directly applicable to text data

Before diving into how nfu works, here are a couple of use cases that illustrate what it does at a high level.

Testing correlation

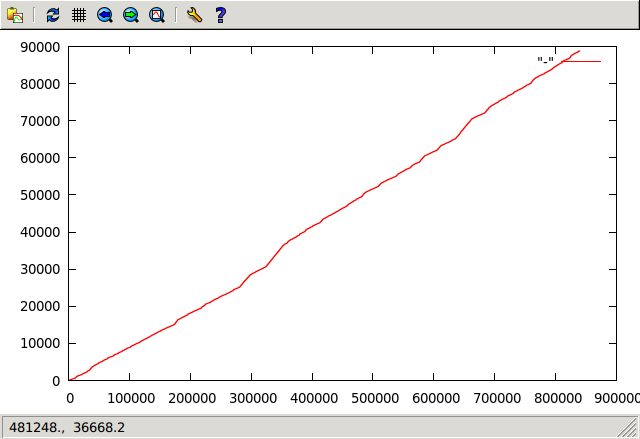

As words get longer, do they tend to contain more “e”s? Probably, but let’s find out empirically by looking at all English words. Specifically, we’ll generate a plot whose X axis is cumulative length and whose Y axis is cumulative “e” count. Using standard UNIX tools:

$ perl -ne 'chomp;
			$_ = lc;
			print $x += length, "\t", $y += length(s/[^e]//gr), "\n"' \
  < /usr/share/dict/words \
  | gnuplot -e 'plot "-" with lines' -persist

Using nfu:

$ nfu /usr/share/dict/words \
	  -m lc%0 \
	  -m 'row length %0, length %0 =~ s/[^e]//gr' \
	  -s01p %l

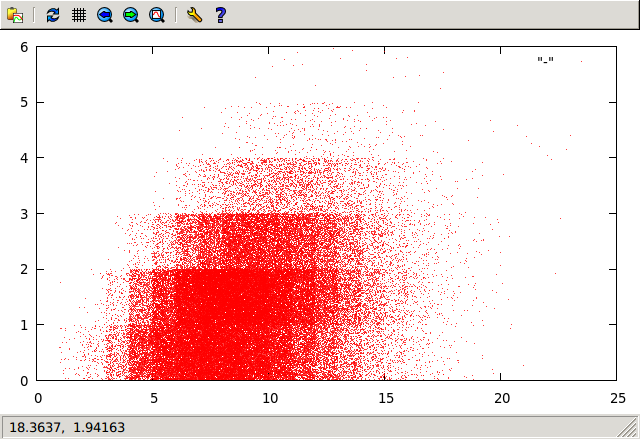

We can easily change this command to get a scatter plot. To see densities better, let’s add a bit of randomness to each data point:

$ nfu /usr/share/dict/words \
	  -m lc%0 \
	  -m 'row length %0, length %0 =~ s/[^e]//gr' \
	  -m 'row %0 + rand(), %1 + rand()' \
	  -p %d



The first three lines are identical, so we can generate an intermediate file. nfu transparently loads compressed data, so let’s gzip the file to save some space:

$ nfu /usr/share/dict/words \
	  -m lc%0 \
	  -m 'row length %0, length %0 =~ s/[^e]//gr' \
  | gzip > points.gz
$ nfu points.gz -s01p %l
$ nfu points.gz -m 'row %0 + rand(), %1 + rand()' -p %d

Joint analysis of JSON files

Suppose you’ve got two files, one a TSV of user-id, tweet-json and the other a TSV of user-id, user-json. You’d like to measure the differences between tweets of people with many vs few followers by building a list of most-used words faceted by log(followers). Using standard tools (including the indispensable jq) you might do this:

$ cut -f2 tweet-jsons \
  | jq -r '.text' \
  | sed 's/[\t\n]//g' \
  | paste <(cut -f1 tweet-jsons) - \
  | sort -k 1b,1 \
  > sorted-tweet-text
$ cut -f2 user-jsons \
  | jq -r '.followers_count' \
  | perl -ne 'print int(log($_ || 1)), "\n"' \
  | paste <(cut -f1 user-jsons) - \
  | sort -k 1b,1 \
  | join - sorted-tweet-text \
  | cut -f2-3 \
  | sort -n \
  > follower-counts-and-texts
$ perl -ne 'my ($count, $text) = split /\t/;
			print "$count\t$_\n" for split /\W+/, $text' \
  < follower-counts-and-texts \
  | sort \
  | uniq -c \
  | perl -ane 'print "@F[1,0,2]\n"' \
  | sort -n \
  > sorted-logfollowers-word-histogram

Of course, an easier way to do most of this would be to use SQLite or local map/reduce, but these introduce their own overhead, particularly when interoperating with other tools. Here’s how to do all of the above using nfu:

$ nfu tweet-jsons -m 'map row(%0, $_), split /\W+/, jd(%1).text' \
	  -i0 sh:"$(nfu --quote user-jsons \
					-m 'row %0, int log(jd(%1).followers_count || 1)')" \
	  -f21gcf102o \
	  > sorted-logfollowers-word-histogram

Introduction

nfu is all about tab-delimited text data. It does a number of things to make this data easier to work with; for example:

$ git clone git://github.com/spencertipping/nfu
$ cd nfu
$ ./nfu README.md               # behaves like 'less'
$ gzip README.md
$ ./nfu README.md.gz            # transparent decompression (+ xz, bz2, lzo)

Now let’s do some basic word counting. We can get a word list by using nfu’s -m operator, which takes a snippet of Perl code and executes it once for each line. Then we sort (-g, or --group), count-distinct (-c), and reverse-numeric-sort (-O, or --rorder) to get a histogram descending by frequency:

$ nfu README.md -m 'split /\W+/, %0' -gcO
48
28  nfu
20  seq
19  100
...
$

%0 is shorthand for $_[0], which is how you access the first element of Perl’s function-arguments (@_) variable. Any Perl code you give to nfu will be run inside a subroutine, and the arguments are usually tab-separated field values.

Commands you issue to nfu are chained together using shell pipes. This means that the following are equivalent:

$ nfu README.md -m 'split /\W+/, %0' -gcO
$ nfu README.md | nfu -m 'split /\W+/, %0' \
				| nfu -g \
				| nfu -c \
				| nfu -O

nfu uses a number of shorthands whose semantics may become confusing. To see what’s going on, you can use its documentation options:

$ nfu --expand-code 'split /\W+/, %0'
split /\W+/, $_[0]
$ nfu --explain README.md -m 'split /\W+/, %0' -gcO
file    README.md
--map   'split /\W+/, %0'
--group
--count
--rorder
--preview
$

You can also run nfu with no arguments to see a usage summary.

Basic idioms

Extracting data

  • -m 'split /\W+/, %0': convert text file to one word per line
  • -m 'map {split /\W+/} @_': same thing for text files with tabs
  • -F '\W+': convert file to one word per column, preserving lines
  • -m '@_': reshape to a single column, flattening into rows
  • seq 10 | tr '\n' '\t': reshape to a single row, flattening into columns

The -F operator resplits lines by the regexp you provide. So to parse /etc/passwd, for example, you’d say nfu -F : /etc/passwd ….

Generating data

  • -P 5 'cat /proc/loadavg': run 'cat /proc/loadavg' every five seconds, collecting stdout
  • --repeat 10 README.md: read README.md 10 times in a row (this is more useful than it looks; see "Pipelines, Combination, and Quotation" below)

Basic transformations

  • -n: prepend line numbers as first column
  • -m 'row @_, %0 * 2': keep all existing columns, appending %0 * 2 as a new one
  • -m '%1 =~ s/foo/bar/g; row @_': transform second column by replacing 'foo' with 'bar'
  • -m 'row %0, %1 =~ s/foo/bar/gr, @_[2..$#_]': same thing, but without in-place modification of %1

-M is a variant of -m that runs a pool of parallel subprocesses (by default 16). This doesn’t preserve row ordering, but can be useful if you’re doing something latency-bound like fetching web documents:

$ nfu url-list -M 'row %0, qx(curl %0)'

In this example, Perl’s qx() operator could easily produce a string containing newlines; in fact most shell commands are written this way. Because of this, nfu’s row() function strips the newlines from each of its input strings. This guarantees that row() will produce exactly one line of output.

Filtering

  • -k '%2 eq "nfu"': keep any row whose third column is the text "nfu"
  • -k '%0 < 10': keep any row whose first column parses to a number < 10
  • -k '@_ < 5': keep any row with fewer than five columns
  • -K '@_ < 5': reject any row with fewer than five columns (-K vs -k)
  • -k 'length %0 < 10'
  • -k '%0 eq -+-%0': keep every row whose first column is numeric

Row slicing

  • -T5: take the first 5 lines
  • -T+5: take the last 5 lines (drop all others)
  • -D5: drop the first 5 lines
  • --sample 0.01: take 1% of rows randomly
  • -E100: take every 100th row deterministically

Column slicing

  • -f012: keep the first three columns (fields) in their original order
  • -f10: swap the first two columns, drop the others
  • -f00.: duplicate the first column, pushing others to the right
  • -f10.: swap the first two columns, keep the others in their original order
  • -m 'row(reverse @_)': reverse the fields within each row (row() is a function that keeps an array on one row; otherwise you'd flatten the columns across multiple rows)
  • -m 'row(grep /^-/, @_)': keep fields beginning with -

Histograms (group, count)

  • -gcO: descending histogram of most frequent values
  • -gcOl: descending histogram of most frequent values, log-scaled
  • -gcOs: cumulative histogram, largest values first
  • -gcf1.: list of unique values (group, count, fields 1..n)

Sorting and counting operators support field selection:

  • -g1: sort by second column
  • -c0: count unique values of field 0
  • -c01: count unique combinations of fields 0 and 1 jointly

Common numeric operations

  • -q0.05: round (quantize) each number to the nearest 0.05
  • -q10?: quantize each number to the nearest 10
  • -s: running sum
  • -S: delta (inverse of -s)
  • -l: log-transform each number, base e
  • -L: inverse log-transform (exponentiate) each number
  • -a: running average
  • -V: running variance
  • --sd: running sample standard deviation

Each of these operations can be applied to a specified set of columns. For example:

  • seq 10 | nfu -f00s1: first column is 1..10, second is running sum of first
  • seq 10 | nfu -f00a1: first column is 1..10, second is running mean of first

Some of these commands take an optional argument; for example, you can get a windowed average if you specify a second argument to -a:

  • seq 10 | nfu -f00a1,5: second column is a 5-value sliding average
  • seq 10 | nfu -f00q1,5: second column quantized to 5
  • seq 10 | nfu -f00l1,5: second column log base-5
  • seq 10 | nfu -f00L1,5: second column 5x

Multiple-digit fields are interpreted as multiple single-digit fields:

  • seq 10 | nfu -f00a01,5: calculate 5-average of fields 0 and 1 independently

The only ambiguous case happens when you specify only one argument: should it be interpreted as a column selector, or as a numeric parameter? nfu resolves this by using it as a parameter if the function requires an argument (e.g. -q), otherwise treating it as a column selector.

Plotting

Note: all plotting requires that gnuplot be in your $PATH.

  • seq 100 | nfu -p: 2D plot; input values are Y coordinates
  • seq 100 | nfu -m 'row @_, %0 * %0' -p: 2D plot; first column is X, second is Y
  • seq 100 | nfu -p %l: plot with lines
  • seq 100 | nfu -m 'row %0, sin(%0), cos(%0)' --splot: 3D plot
$ seq 1000 | nfu -m '%0 * 0.1' \
				 -m 'row %0, sin(%0), cos(%0)' \
				 --splot %l

You can use nfu --expand-gnuplot '%l', for example, to see how nfu is transforming your gnuplot options. (There’s also a list of these shorthands in nfu’s usage documentation.)

Progress reporting

If you’re doing something with a large amount of data, it’s sometimes hard to know whether it’s worth hitting ^C and optimizing stuff. To help with this, nfu has a --verbose (-v) option that activates throughput metrics for each operation in the pipeline. For example:

$ seq 100000000 | nfu -o                # this might take a while
$ seq 100000000 | nfu -v -o             # keep track of lines and kb

Advanced usage (assumes some Perl knowledge)

JSON

nfu provides two functions, jd (or json_decode) and je/json_encode, that are available within any code you write:

$ ip\_addrs=$(seq 10 | tr '\n' '\r' | nfu -m 'join &quot;,&quot;, map &quot;%0.4.4.4&quot;, @_')
$ query\_url=&quot;www.datasciencetoolkit.org/ip2coordinates/$ip\_addrs&quot;
$ curl &quot;$query\_url&quot; \
  | nfu -m 'my $json = jd(%0);
			map row($\_, ${$json}{$\_}.locality), keys %$json'

This code uses another shorthand, .locality, which expands to a Perl hash dereference ->{“locality”}. There isn’t a similar shorthand for arrays, which means you need to explicitly dereference those:

$ echo '[1,2,3]' | nfu -m 'jd(%0)[0]'           # won't work!
$ echo '[1,2,3]' | nfu -m '${jd(%0)}[0]'

Multi-plotting

You can setup a multiplot by creating multiple columns of data. gnuplot then lets you refer to these with its using N construct, which nfu lets you write as %uN:

$ seq 1000 | nfu -m '%0 * 0.01' | gzip &gt; numbers.gz
$ nfu numbers.gz -m 'row sin(%0), cos(%0)' \
				 --mplot '%u1%l%t&quot;sin(x)&quot;; %u2%l%t&quot;cos(x)&quot;'
$ nfu numbers.gz -m 'sin %0' \
				 -f00a1 \
				 --mplot '%u1%l%t&quot;sin(x)&quot;; %u2%l%t&quot;average(sin(x))&quot;'
$ nfu numbers.gz -m 'sin %0' \
				 -f00a1 \
				 -m 'row @_, %1-%0' \
				 --mplot '%u1%l%t&quot;sin(x)&quot;;
						  %u2%l%t&quot;average(sin(x))&quot;;
						  %u3%l%t&quot;difference&quot;'

The semicolon notation is something nfu requires. It works this way because internally nfu scripts gnuplot like this:

plot "tempfile-name" using 1 with lines title "sin(x)"
plot "tempfile-name" using 2 with lines title "average(sin(x))"
plot "tempfile-name" using 3 with lines title "difference"

Local map-reduce

nfu provides an aggregation operator for sorted data. This groups adjacent rows by their first column and hands you a series of array references, one for each column’s values within that group. For example, here’s word-frequency again, this time using -A:

$ nfu README.md -m 'split /\W+/, %0' \
				-m 'row %0, 1' \
				-gA 'row $\_, sum @\{\%1\}'

A couple of things are happening here. First, the current group key is stored in $_; this allows you to avoid the more cumbersome (but equivalent) ${%0}[0]. Second, %1 is now an array reference containing the second field of all grouped rows. sum is provided by nfu and does what you’d expect.

In addition to map/reduce functions, nfu also gives you --partition, which you can use to send groups of records to different files. For example:

$ nfu README.md -m 'split /\W+/, %0' \
				--partition 'substr(%0, 0, 1)' \
							'cat &gt; words-starting-with-{}'

--partition will keep up to 256 subprocesses running; if you have more groups than that, it will close and reopen pipes as necessary, which will cause your subprocesses to be restarted. (For this reason, cat > … isn’t a great subprocess; cat >> … is better.)

Loading Perl code

nfu provides a few utility functions:

  • sum @array
  • mean @array
  • uniq @array
  • frequencies @array
  • read\_file "filename": returns a string
  • read\_lines "filename": returns an array of chomped strings

But sometimes you’ll need more definitions to write application-specific code. For this nfu gives you two options, --use and --run:

$ nfu --use myfile.pl ...
$ nfu --run 'sub foo {...}' ...

Any definitions will be available inside -m, -A, and other code-evaluating operators.

A common case where you’d use --run is to precompute some kind of data structure before using it within a row function. For example, to count up all words that never appear at the beginning of a line:

$ nfu README.md -F '\s+' -f0 &gt; first-words
$ nfu --run '$::seen{$\_} = 1 for read\_lines &quot;first-words&quot;' \
	  -m 'split /\W+/, %0' \
	  -K '$::seen\{\%0\}'

Notice that we’re package-scoping %::seen. This is required because while row functions reside in the same package as --run and --use code, they’re in a different lexical scope. This means that any my or our variables are invisible and will trigger compile-time errors if you try to refer to them from other compiled code.

Pseudofiles

Gzipped data is uncompressed automatically by an abstraction that nfu calls a pseudofile. In addition to uncompressing things, several other pseudofile forms are recognized:

$ nfu http://factual.com                # uses stdout from curl
$ nfu sh:ls                             # uses stdout from a command
$ nfu user@host:other-file              # pipe file over ssh -C

nfu supports pseudofiles everywhere it expects a filename, including in read_file and read_lines.

Pipelines, combination, and quotation

nfu gives you several commands that let you gather data from other sources. For example:

$ nfu README.md -m 'split /\W+/, %0' --prepend README.md
$ nfu README.md -m 'split /\W+/, %0' --append README.md
$ nfu README.md --with sh:'tac README.md'
$ nfu --repeat 10 README.md
$ nfu README.md --pipe tac
$ nfu README.md --tee 'cat &gt; README2.md'
$ nfu README.md --duplicate 'cat &gt; README2.md' 'tac &gt; README-reverse.md'

Here’s what these things do:

  • --prepend: prepends a pseudofile's contents to the current data
  • --append: appends a pseudofile
  • --with: joins a pseudofile column-wise, ending when either side runs out of rows
  • --repeat: repeats a pseudofile the specified number of times, forever if n = 0; ignores any prior data
  • --pipe: same thing as a shell pipe, but doesn't lose nfu state
  • --tee: duplicates data to a shell process, collecting its stdout into your data stream (you can avoid this by using > /dev/null)
  • --duplicate: sends your data to two shell processes, combining their stdouts

Sometimes you’ll want to use nfu itself as a shell command, but this can become difficult due to nested quotation. To get around this, nfu provides the --quote operator, which generates a properly quoted command line:

$ nfu --repeat 10 sh:&quot;$(nfu --quote README.md -m 'split /\W+/, %0')&quot;

Keyed joins
This works on sorted data, and behaves like SQL’s JOIN construct. Under the hood, nfu takes care of the sorting and the voodoo associated with getting sort and join to work together, so you can write something simple like this:

$ nfu /usr/share/dict/words -m 'row %0, length %0' &gt; bytes-per-word
$ nfu README.md -m 'split /\W+/, %0' \
				-I0 bytes-per-word \
				-m 'row %0, %1 // 0' \
				-gA 'row $\_, sum @\{\%1\}'

Here’s what’s going on:

  • -I0 bytes-per-word: outer left join using field 0 from the data, adjoining all columns after the key field from the pseudofile 'bytes-per-word'
  • -m 'row %0, %1 // 0': when we didn't get any join data, default to 0 (// is Perl's defined-or-else operator)
  • -gA 'row $_, sum @\{\%1\}': reduce by word, summing total bytes

We could sidestep all nonexistent words by using -i0 for an inner join instead. This drops all rows with no corresponding entry in the lookup table.

Go forth and conquer

nfu is an actively-maintained project we use in production, so bug reports and feature requests are both welcome. If you read this far and find this kind of thing interesting, you should consider working at Factual!

Related Posts:

Made it through this post and want some more? Consider working at Factual!
See Job Openings
